Askar LRGB Imaging Filter 2" Inch Mounted

Askar LRGB Imaging Filter 2"

Introducing the Askar LRGB Imaging Filter Set

Welcome to the world of high-precision astrophotography with the Askar LRGB Imaging Filter 2" Inch Mounted. This state-of-the-art filter set is specifically designed for astrophotographers using monochrome cameras with CCD or CMOS sensors. Whether you are capturing the intricate details of deep-sky objects or the vibrant colors of planetary bodies, the Askar LRGB filter set ensures you achieve stunning, high-contrast images with accurate color reproduction.

Features of the Askar LRGB Imaging Filter Set Kit

• Four High-Quality Filters: The set includes four mounted filters: Luminance (L), Red (R), Green (G), and Blue (B). Each filter is crafted to pass specific bands of light, allowing for detailed and vivid imaging.
• Precise Passbands: The filters have precise passbands, with a gap between red and green to improve color balance and reduce the impact of sodium light pollution. The blue and green passbands slightly overlap, enhancing the natural color of emission nebulae.
• High Transmission Rates: The filters boast a transmission rate of at least 90%, ensuring maximum light throughput and minimal loss of detail.
• IR Rejection: The filters reject infrared wavelengths, eliminating the need for an additional IR cut filter and improving image clarity.
• Equal Weight Color Combination: The RGB filters are designed for 1:1:1 equalized exposures, crucial for automated imaging and accurate color reproduction.
• Parfocal Design: All filters in the set are parfocal, meaning they require no refocusing when switching between them, simplifying the imaging process.
• Durable Construction: Made with high-quality materials, these filters are built to last and provide consistent performance over time.

Applications of the Askar LRGB Imaging Filter Set Inch Mounted

The Askar LRGB Imaging Filter Set is versatile and suitable for a wide range of astrophotography applications:

• Deep-Sky Imaging: Capture detailed images of galaxies, star clusters, and nebulae with vibrant colors and high contrast.
• Planetary Photography: Achieve stunning images of planets, showcasing their true colors and intricate details.
• Color Imaging: The filters allow for the creation of true color images, combining individual exposures through image-processing software.

Benefits of Using the Askar LRGB Imaging Filter Set

1. Enhanced Image Clarity: The precise passbands and high transmission rates ensure clear, detailed images with minimal light loss.
2. Accurate Color Reproduction: The RGB filters provide balanced, true-to-life colors, making your astrophotography more realistic and striking.
3. Reduced Light Pollution Impact: The filters effectively reduce the interference of sodium vapor street lights, enhancing image quality in urban areas.
4. Simplified Imaging Process: The parfocal design and equal weight color combination make the imaging process more straightforward, reducing the need for frequent adjustments.
5. Durable and Reliable: Built to withstand regular use, these filters offer long-term reliability and consistent performance.

What is the Askar LRGB Imaging Filter Set Used For?

The Askar LRGB Imaging Filter Set is primarily used for capturing high-quality, color images of celestial objects. The set is ideal for both planetary and deep-sky astrophotography, providing the tools needed to capture stunning, detailed images with accurate color reproduction. The filters are designed to work with monochrome cameras equipped with CCD or CMOS sensors, making them a versatile addition to any astrophotographer's toolkit.

Usage of the Askar LRGB Imaging Filter Set Kit

Setting Up the Filters

1. Attach the Filters: Securely screw the appropriate filter onto your camera or telescope. Ensure it is firmly in place to avoid any movement during imaging.
2. Adjust Camera Settings: Configure your camera settings based on the specific filter and the object you are imaging. Adjust exposure times to capture the finest details.
3. Focus Carefully: Achieve sharp focus by adjusting your camera or telescope. The parfocal design ensures that minimal refocusing is needed when switching between filters.

Imaging Tips

1. Choose a Clear Night: Clear skies yield the best results. Monitor weather conditions to select optimal imaging nights.
2. Experiment with Exposure: Test different exposure times to find the settings that best capture the desired details and colors.
3. Stack Images: Enhance detail and reduce noise by stacking multiple images using software like DeepSkyStacker or PixInsight.
4. Post-Process: Utilize post-processing software to refine your images by adjusting contrast, brightness, and color balance.

Tips for Using the Askar LRGB Imaging Filter Set

1. Regular Calibration: Regularly calibrate your camera to ensure accurate color representation and optimal performance.
2. Stable Mount: Use a sturdy tripod or mount to avoid camera shake and achieve sharp images.
3. Prevent Dew Formation: Use a dew heater or shield to prevent dew from forming on the filters, which can obscure your images.
4. Try Different Targets: Experiment with various celestial objects to fully utilize the filter's capabilities.
5. Optimize Imaging Location: If possible, choose imaging locations with minimal light pollution to maximize image quality.

Frequently Asked Questions (FAQ)

Q1: Can I use the Askar LRGB Imaging Filter Set with my DSLR camera?

A1: The filters are designed for monochrome cameras with CCD or CMOS sensors. While they can be used with modified DSLRs, optimal performance is achieved with dedicated monochrome cameras.

Q2: Are these filters suitable for solar imaging?

A2: No, these filters are not recommended for solar imaging. They are designed for deep-sky and planetary astrophotography.

Q3: How do I clean the filters?

A3: Use a soft, lint-free cloth or specialized lens cleaning tissue to gently clean the filters. Avoid harsh chemicals that could damage the coatings.

Q4: Can I use the filters for visual observations?

A4: The filters are optimized for imaging rather than visual observation. However, they can be used with large-diameter telescopes for specific visual applications.

Q5: What should I do if I observe halos around bright stars?

A5: Halos around bright stars can occur with some filters. Adjust your imaging setup or use post-processing techniques to minimize their impact.

Why Should You Buy the Askar LRGB Imaging Filter Set?

1. Superior Image Quality: Achieve enhanced image clarity and detail with the precise passbands and high transmission rates of these filters.
2. True Color Reproduction: Capture the true colors of celestial objects, providing realistic and striking images.
3. Versatile Application: Suitable for both planetary and deep-sky imaging, these filters offer flexibility for various astrophotography needs.
4. Durable Construction: Built to last, these filters provide consistent performance over many years.
5. Simplified Imaging Process: The parfocal design and equal weight color combination make the imaging process more straightforward, reducing the need for frequent adjustments.

Popular Targets with the Askar LRGB Imaging Filter Set

The filters are perfect for capturing a variety of celestial objects. Popular targets include:

1. Orion Nebula (M42): Capture the stunning details and vibrant colors of this bright emission nebula.
2. Andromeda Galaxy (M31): Achieve detailed images of our nearest spiral galaxy neighbor.
3. Pleiades Star Cluster (M45): Highlight the bright blue stars and surrounding nebulosity of this open star cluster.
4. Horsehead Nebula (Barnard 33): Reveal the intricate structure of this dark nebula against the bright backdrop of IC 434.
5. Jupiter: Capture the intricate details of Jupiter's cloud bands and Great Red Spot.

Specifications of the Askar LRGB Imaging Filter Set

• Luminance (L) Filter:

  • Transmission Range: 400-700nm
  • Peak Transmission: >90%
  • Thickness: 2mm +/- 0.05mm

• Red (R) Filter:

  • Transmission Range: 610-700nm
  • Peak Transmission: >90%
  • Thickness: 2mm +/- 0.05mm

• Green (G) Filter:

  • Transmission Range: 500-580nm
  • Peak Transmission: >90%
  • Thickness: 2mm +/- 0.05mm

• Blue (B) Filter:

  • Transmission Range: 450-490nm
  • Peak Transmission: >90%
  • Thickness: 2mm +/- 0.05mm

Package Content

When you purchase the Askar LRGB Imaging Filter 2" Inch Mounted, you will receive:

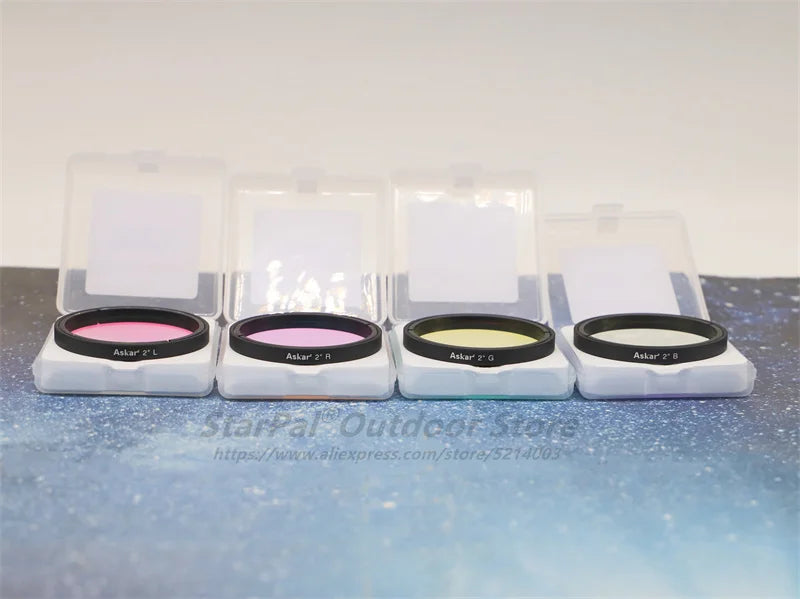

1. Four Mounted Filters: Includes Luminance (L), Red (R), Green (G), and Blue (B) filters.
2. Protective Case: A sturdy case to protect the filters during transport and storage.
3. Instruction Manual: Detailed instructions on how to use and care for the filters.
4. Warranty Card: Information on the product warranty and how to register your filters for warranty coverage.

Caution

• Avoid Direct Sunlight: Do not look at the sun through the filters, as this can cause serious eye damage.
• Handle with Care: The filters are delicate and should be handled with care to avoid scratches or damage to the coatings.
• Storage: Store the filters in their protective case when not in use to prevent dust and scratches.

Important Note

While these filters are designed to provide high-quality images and reduce light pollution interference, the final image quality can still be affected by factors such as telescope optics, camera sensor quality, and imaging conditions. It is important to experiment with different settings and techniques to achieve the best results.
