Optolong LRGB 2 Inch Filter Set Kit

Optolong LRGB 2 Inch Filters

Introducing the Optolong LRGB 2 Inch Filter Set Kit

The Optolong LRGB 2 Inch Filter Set Kit is a vital accessory for any astrophotographer or astronomer seeking to capture stunning, high-contrast images of the night sky. This set of four filters—Luminance (L), Red (R), Green (G), and Blue (B)—is meticulously designed to separate the light spectrum into its primary components, allowing for detailed and accurate color representation in your astrophotography. With these filters, you can achieve exceptional image quality, making it easier to photograph deep-sky objects and planetary details.

Features of the Optolong LRGB 2 Inch Filters

The Optolong LRGB 2 Inch Filter Set Kit is packed with advanced features that cater to the needs of serious astronomers and astrophotographers:

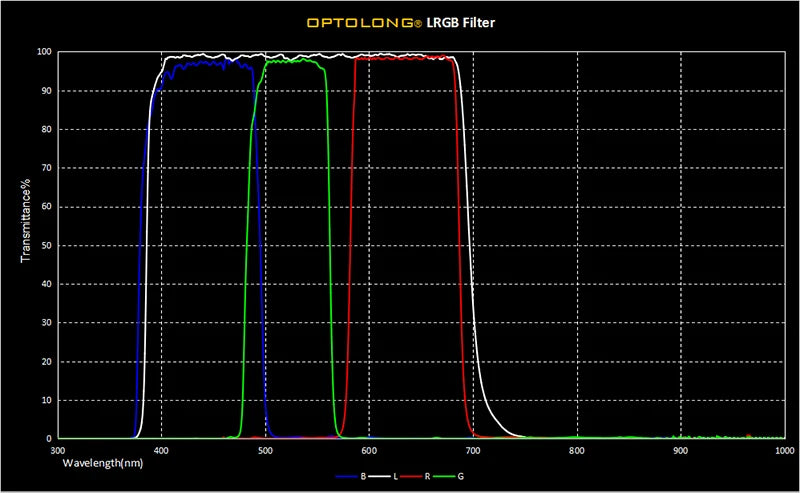

• High Transmission Rates: Each filter in the set boasts a 95% transmission rate at the passband, ensuring high efficiency and natural color imaging.
• Effective Light Pollution Blocking: The filters are designed to block out the primary Sodium (Na) light pollution line at 589nm, improving color balance and separation.
• Infrared Blocking: The filters also block infrared wavelengths (700-1100nm), eliminating the need for a separate IR cut-off filter.
• Optical Precision: Both surfaces of the filters are fine optically polished to 1/4 wavelength or better, with parallelism within 30 seconds of arc.
• High-Quality Glass: Made from 2mm thick Schott B270 optical glass substrate, the filters offer excellent durability and performance.
• Advanced Coating Technology: Multi-layer anti-reflection coatings and non-cementing optical substrate coatings ensure high transmission and blocking of unwanted wavelengths. The electron-beam gun evaporation with ion-assisted deposition technology enhances durability and resistance to scratching.
• Standardized Threads: The filters feature a 2-inch astronomy filter with standard M48x0.75 male filter thread.
• Ultra-Thin Design: The ultra-thin filter cell minimizes vignetting, providing a clear optical aperture of 45mm.
• Durable Construction: Precision CNC-machined metal filter cells with a sand-blasted black anodized finish, anti-reflection treatment, and laser engraving ensure long-lasting use.

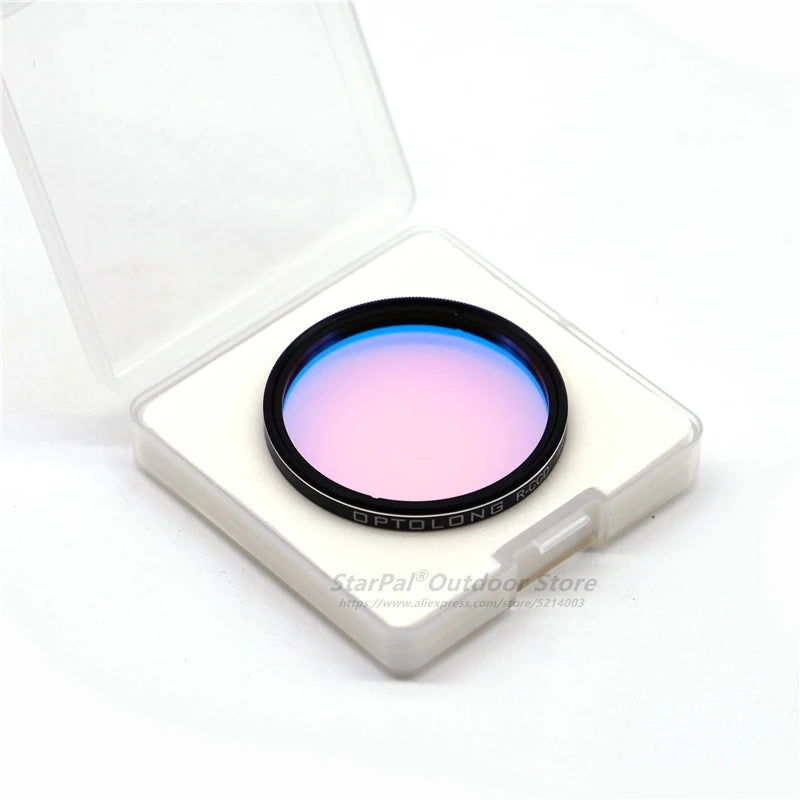

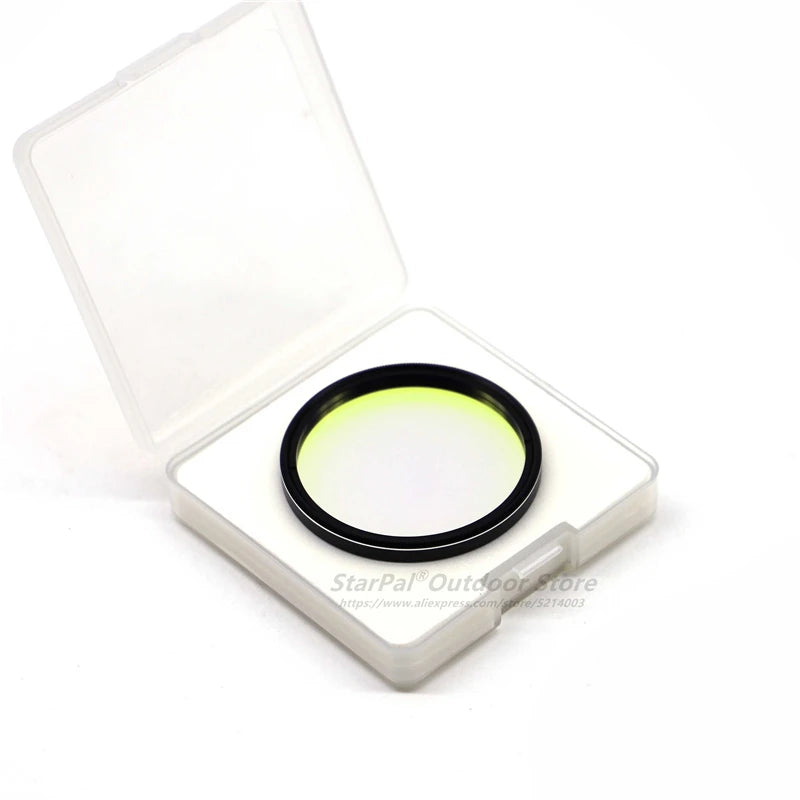

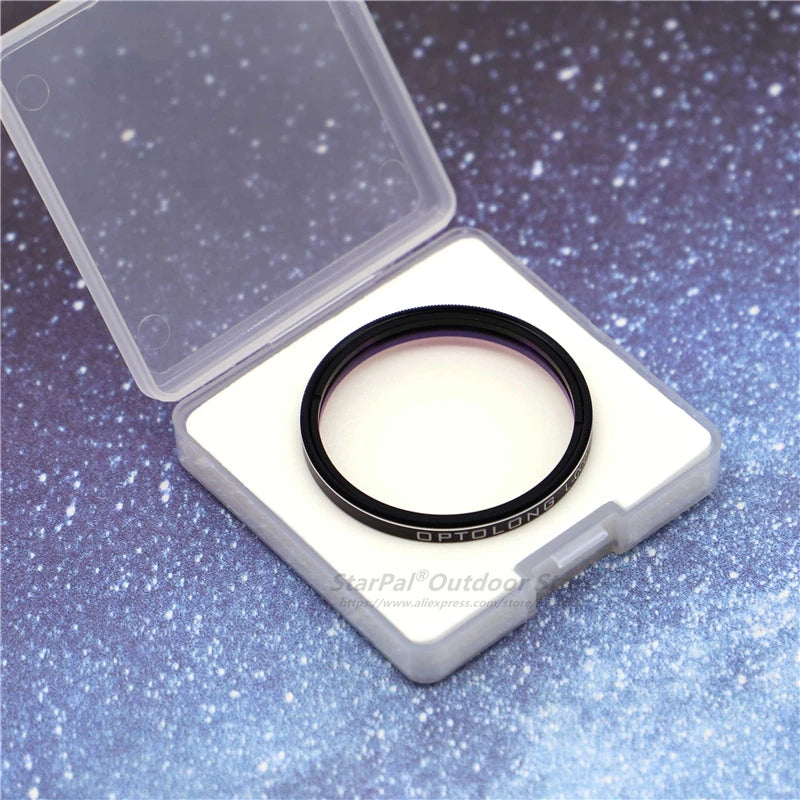

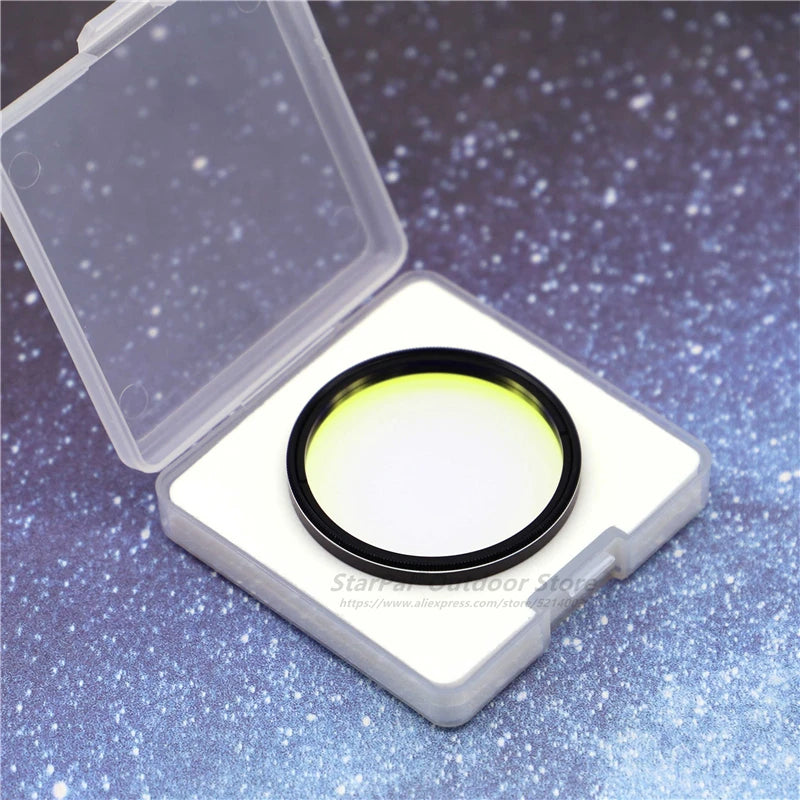

• Protective Storage Case: Each filter comes with a high-quality protective plastic storage case to keep them safe when not in use.

Applications of the Optolong LRGB 2 Inch Filter Set

This filter set is ideal for a variety of astronomical applications:

• Deep-Sky Imaging: Perfect for capturing detailed images of nebulae, galaxies, and star clusters with accurate color representation.
• Planetary Imaging: Enhances the details and colors of planets in our solar system.
• Monochrome CCD Imaging: Works exceptionally well with delayered monochrome CCD cameras, providing the raw material needed for image processing in the sRGB color space.

Benefits of Using the Optolong LRGB 2 Inch Filters

Incorporating the Optolong LRGB 2 Inch Filter Set Kit into your astrophotography setup offers numerous benefits:

• Superior Image Quality: Achieve high-contrast, detailed images with accurate color representation.
• Enhanced Color Balance: The filters block unwanted light pollution and infrared wavelengths, improving color balance and separation.
• Durable and Reliable: Made from high-quality materials and advanced manufacturing processes, the filters are built to last.
• Versatile Use: Suitable for both deep-sky and planetary imaging, as well as monochrome CCD imaging.

What is the Optolong LRGB 2 Inch Filter Set Kit Used For?

The Optolong LRGB 2 Inch Filter Set Kit is used to improve the quality of astronomical images by separating the light spectrum into its primary components. This allows for detailed and accurate color representation in both deep-sky and planetary imaging. By blocking unwanted light pollution and infrared wavelengths, these filters enhance the visibility of celestial objects and improve the overall image quality.

Usage Instructions for the Optolong LRGB 2 Inch Filter Kit

Using the Optolong LRGB 2 Inch Filter Set Kit is straightforward and efficient. Here’s how to get started:

1. Attach the Filters: Secure each filter to the 2-inch eyepiece of your telescope, using the standard M48x0.75 male filter thread.
2. Adjust Focus: Adjust your telescope’s focus to get a clear view of your target object.
3. Capture Images: Begin capturing images, taking advantage of the enhanced clarity and color balance provided by the filters.
4. Store Safely: After use, store the filters in their protective plastic cases to prevent damage and contamination.

Tips for Getting the Best Results with the Optolong LRGB 2 Inch Filters

To maximize the performance of your Optolong LRGB 2 Inch Filter Set Kit:

• Use in Clear Skies: For optimal results, use the filters under clear and dark skies.
• Combine with Other Filters: Consider using other narrowband filters to capture different wavelengths of light from celestial objects.
• Maintain Your Equipment: Regularly clean your filters and telescope lenses to ensure the highest image quality.

Q&A: Common Questions About the Optolong LRGB 2 Inch Filter Kit

Q: Can I use the Optolong LRGB 2 Inch Filter Set Kit with any telescope? A: Yes, the filters are compatible with any telescope that accommodates 2-inch eyepieces.

Q: Does the filter set reduce light pollution effectively? A: Yes, the filters are designed to block the primary Sodium (Na) light pollution line at 589nm, significantly reducing light pollution.

Q: Are the filters suitable for both visual observation and astrophotography? A: While primarily designed for astrophotography, the filters can also be used for visual observation to enhance the visibility of celestial objects.

Why Should You Buy the Optolong LRGB 2 Inch Filters?

The Optolong LRGB 2 Inch Filter Set Kit is an essential tool for anyone serious about astrophotography. Its ability to separate the light spectrum into primary components and block unwanted wavelengths makes it invaluable for capturing high-contrast, detailed images of the night sky. Whether you’re focusing on deep-sky objects or planetary details, this filter set ensures superior performance and image quality.

Specifications of the Optolong LRGB 2 Inch Filter Set Kit

• Filter Size: 2 inches
• Transmission: 95% at passband
• Blocking: Infrared wavelengths (700-1100nm) and primary Sodium (Na) light pollution line at 589nm
• Optical Quality: Fine optically polished to 1/4 wavelength or better, parallelism within 30 seconds of arc
• Material: 2mm thick Schott B270 optical glass substrate
• Surface Quality: 60/40 or better (US Military Spec MIL-O-13830)
• Coating Technology: Multi-layer anti-reflection, non-cementing optical substrate, electron-beam gun evaporation with ion-assisted deposition
• Thread: M48x0.75 male filter thread
• Design: Ultra-thin filter cell, clear optical aperture of 45mm
• Construction: Precision CNC-machined metal filter cell with sand-blasted black anodized finish, anti-reflection treatment, laser engraving

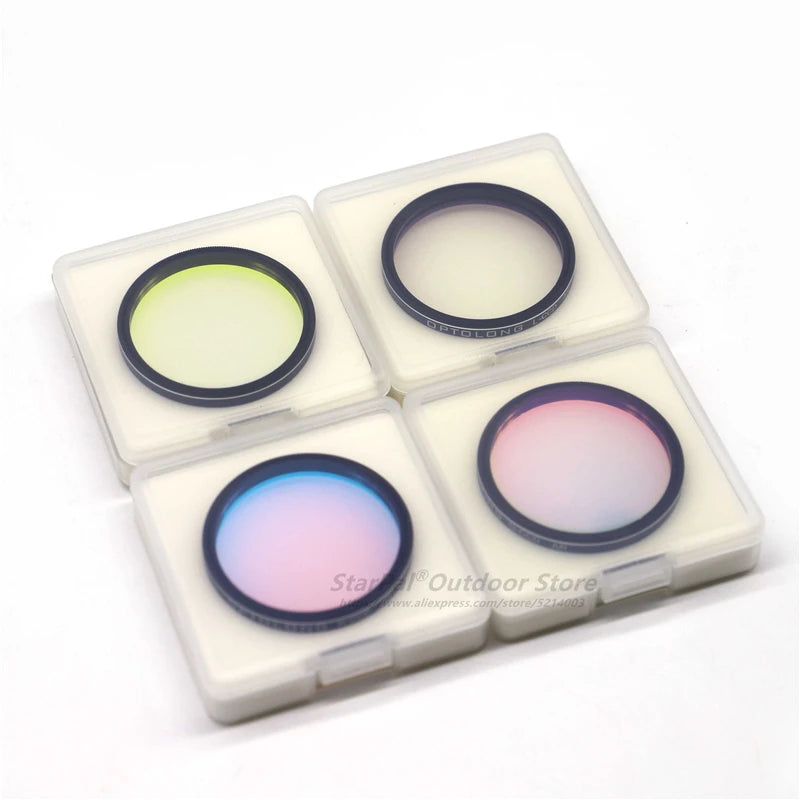

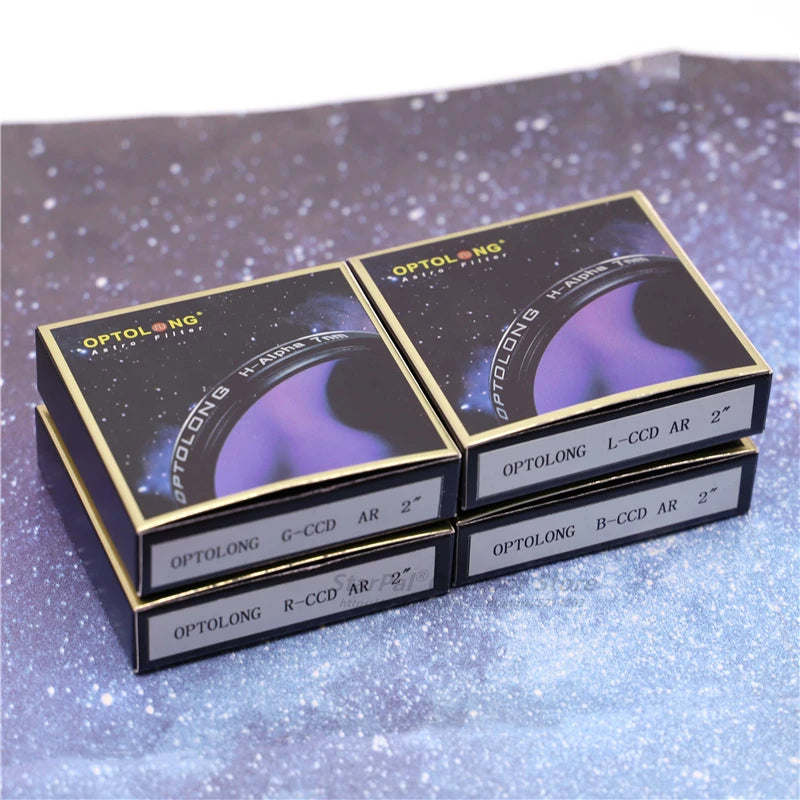

Package Content

When you purchase the Optolong LRGB 2 Inch Filter Set Kit, you will receive:

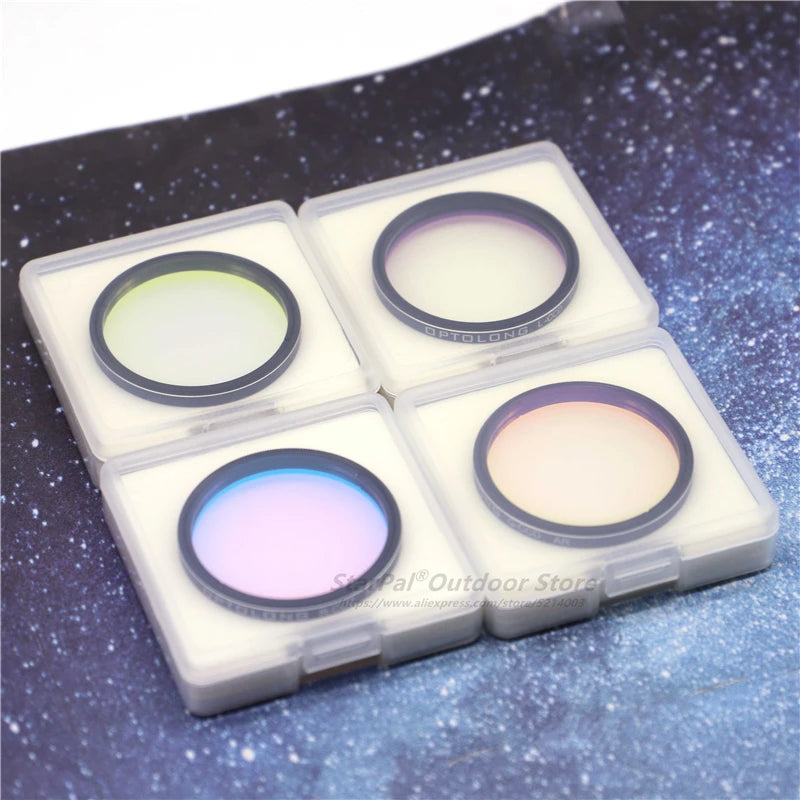

• 1 x Luminance (L) Filter
• 1 x Red (R) Filter

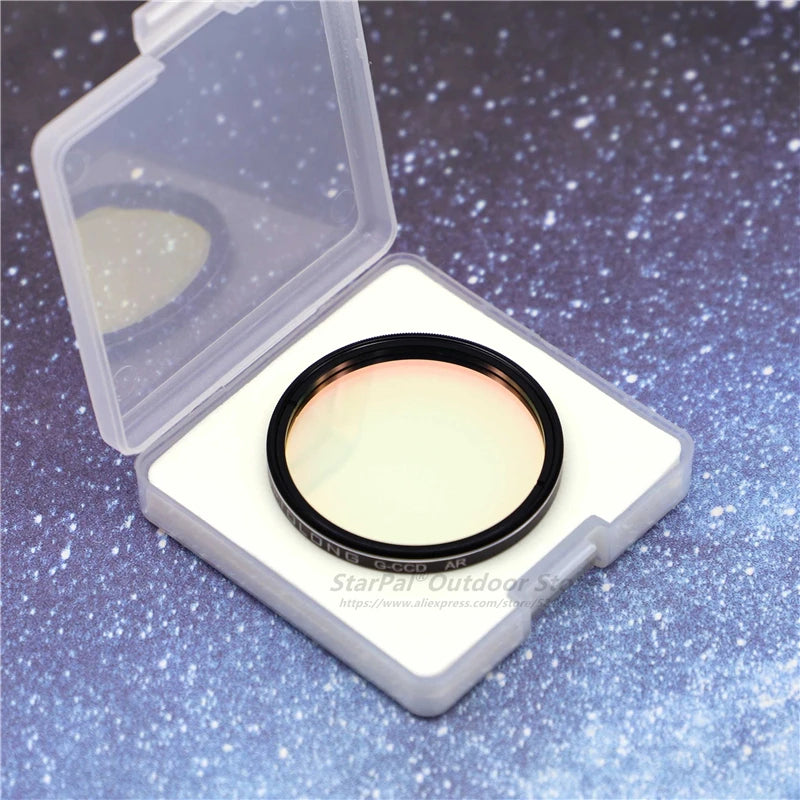

• 1 x Green (G) Filter
• 1 x Blue (B) Filter

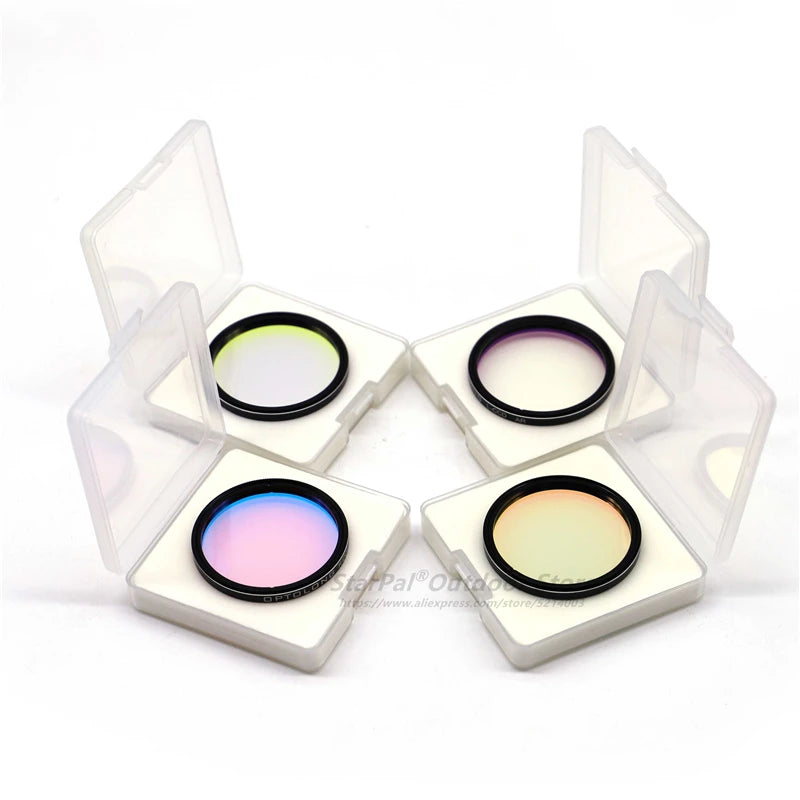

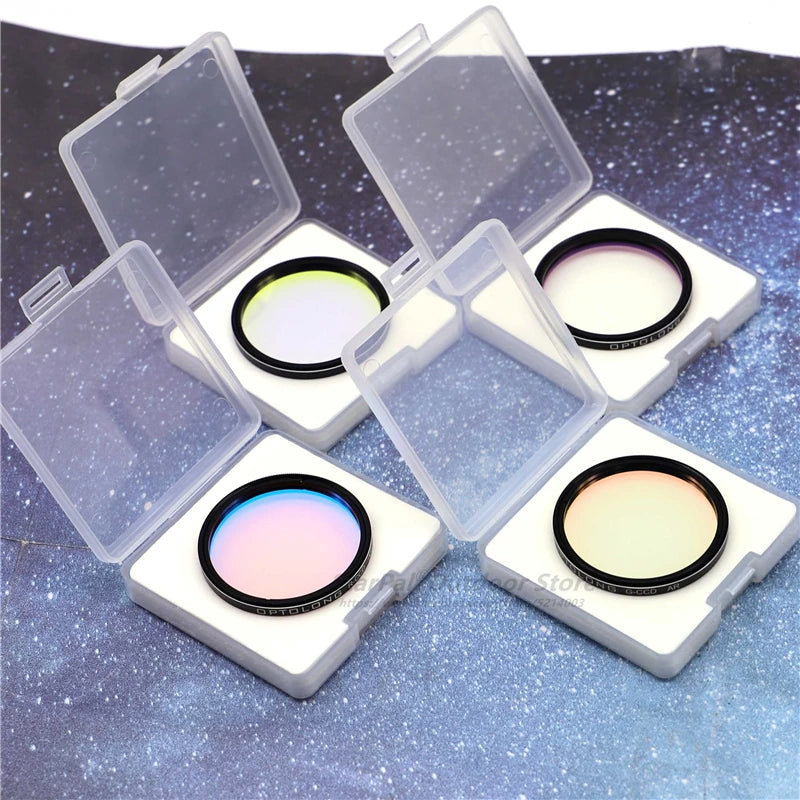

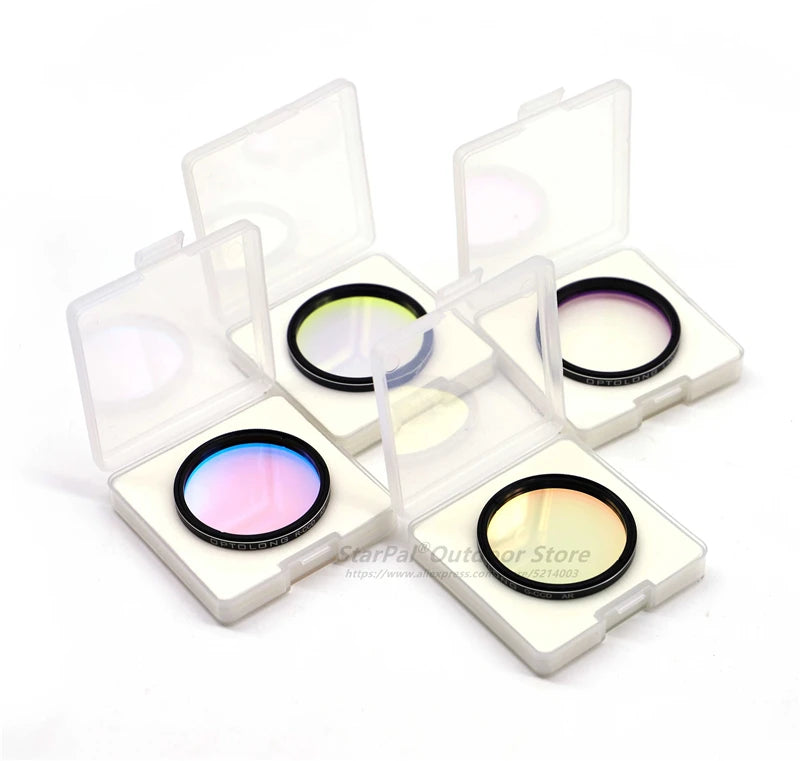

• 4 x Protective Plastic Storage Cases: One for each filter, made from durable PP material to keep them safe when not in use.
